2 In 6 Out 4 In 8 Out Dante DSP Processor Digital Loudspeaker Management Processor

Product Categories
Shenzhen FHB Audio Technology Co., Ltd.
Contact Now

2 In 6 Out 4 In 8 Out Dante DSP Processor Digital Loudspeaker Management Processor

Brand Name : FHB Audio

Model Number : SP-26D

Certification : CE,ROHS

Place of Origin : China

MOQ : 2 Set

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 10000 Set per Month

Delivery Time : 1-10Set: 5-7day ;10-100Set:10-5Days

Packaging Details : Standard packaging;GW:3KG/Set;5Set in one Carton(60*60*36cm);

Products Name : Speaker Management System

Keyword : DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer

Model No. : SP-26D

Analog Channels : 2 input,6 output

Dante Channel : 2 in

Function : Automatic mixing,AGC

Client Software : PC Software

Material : Aluminum

S/N : 110db

digitalizing bit : 24bit

Application : Conference,Education,Hotel

Warranty : 2 Years

Certificate : CE,ROHS

THD+N : <0.002% @ 0 dBu

Working Power Supply : AC110V-220V,50Hz/60Hz

Contact Now

2 in 6 out 4 in 8 out Loudspeaker Management System DSP Digital Speaker Dante Audio Processor

2 In 6 Out 4 In 8 Out Dante DSP Processor Digital Loudspeaker Management Processor

Our Dante products line including:

  • Dante DSP
  • 2CH Dante AVIO
  • 2CH Dante Wall Plate
  • 4CH Dante Box
  • 8CH,16CH Dante Interface
  • Dante Speaker Management Processor
  • Dante Speaker
  • Dante microphone
  • Dante DSP amplifier

Main Features:

  • Support multiple analog signals, Optional Dante signal input and output;

  • Built-in digital audio processing algorithms: gain, delay, EQ, mixing matrix, compressor, divider and limiter.

  • FIR filter with stability and linear phase;

  • Connect via USB or RJ45 cable to achieve PC software control Settings;

  • Save, invoke, import and export functions of multiple scenes;

  • Rotate the encoder select menu switch to facilitate user operation

  • Built in Dante Module

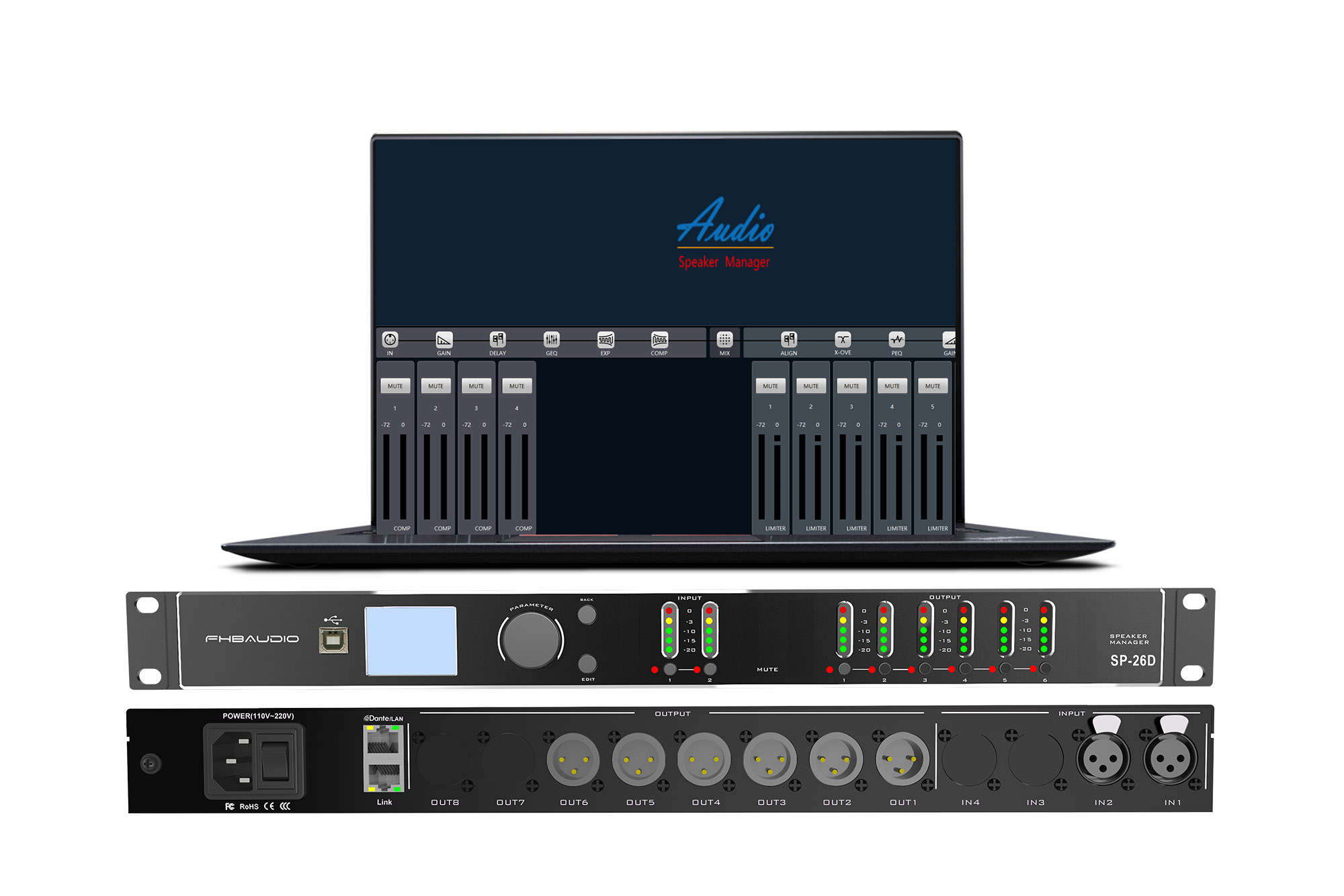

2 In 6 Out 4 In 8 Out Dante DSP Processor Digital Loudspeaker Management Processor

Specification:

Model No. SP-26D
Input/Output 2 Input 6 output
Dante Input/Output 2 Dante input
Frequency response ±0.2 dB(20~20KHz)
Sampling frequency 48K
Maximum input level +18 dBu,balanced input
Maximum output level +18 dBu,balanced output
S/N 110db
THD+N <0.002% @ 0 dBu
digitalizing bit 24bit
Floor noise -90dBu
input impedance 20 KΩ
output impedance 100 Ω
Size 440x208x44mm
Weight 1.9kg
