16x16 Hotel Audio DSP Processor Professional Matrix Sound Management

Name: 16x16 Hotel Audio DSP Processor Professional Matrix Sound Management
Brand: FHB Audio
Price: 1 USD

16x16 Hotel Audio DSP Processor Professional Matrix Sound Management Manufactures

Brand Name : FHB Audio

Model Number : MX-1616-C

Certification : CE,ROHS

Place of Origin : China

MOQ : 2 Set

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 10000 Set per Month

Delivery Time : 1-10Set: 5-7day ;10-100Set:10-5Days

Packaging Details : Standard packaging;GW:3KG/Set;5Set in one Carton(60*60*36cm);

Products Name : Digital Signal Processor

Keyword : DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer

Model No. : MX-1616-C

Analog Channels : 16 input,16 output

Function : Automatic mixing,,AFS,AGC

DSP Chips : Dual Core Ti 450MHz FLOPS

Working Power Supply : AC110V-220V,50Hz/60Hz

Client Software : PC Software,Web control

Input gain amplification : -24～18dB，6dB,Total 7 level

MIC\LINE : Support

Application : Conference,Education,Hotel

Each independent 48V phantom power supply : Support

Certificate : CE,ROHS

Weight : 3Kg

Contact Now

New design Professional Audio DSP Processor 16x16 Matrix Sound Management audio matrix

Main Features:

Suitable for meeting room, campus, art performance, concert and other scene areas
Provide PC software and web control System built-in lock screen function, can effectively avoid the wrong operation.
DSP audio processing, built-in automatic mixer, feedback elimination(AFS),AGC function
Input per channel: Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
Full function matrix remix
Built-in automatic camera tracking function Support for scenario presets；
Automatic memory protection when power off 1U Whole aluminum chassis

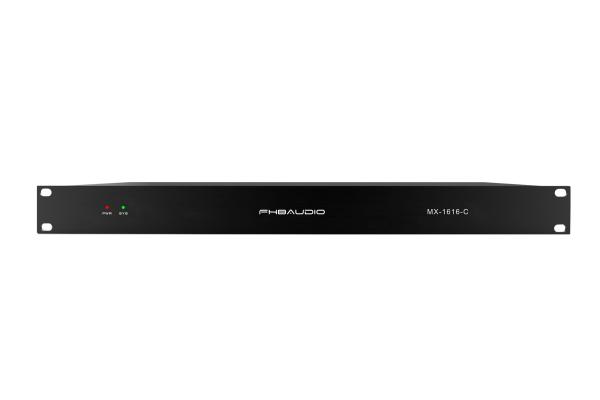

16x16 Hotel Audio DSP Processor Professional Matrix Sound Management

Specification:

Product Technical Parameters
DSP Chip	Dual Core Ti 450MHz FLOPS
Centrally controlled instruction set generator	Support
Input Processing	Pre-amplifier, signal generator, extender, compressor, 5-segment parameter equalization, inversion, automatic gain, automatic mixing
Output Processing	Segment 31 shows equalizer, delay device, frequency divider, limiter, and inverting
Matrix Mixing	Input and output signal matrix mixing, mixing component control
Automatic camera tracking function	Support
Scene preset	100 groups of custom Settings
Sampling	48KHz
phantom power	48V
Frequency response	20 - 20K Hz,±0.2dB
THD+N	≦0.004% @4dBu
Digital to analog dynamic range (A Weighted)	120dB
Analog to Digital dynamic range (A Weighted)	114dB
Input Impedance (Balanced)	20kΩ
Output impedance (Balanced)	100Ω
EIN(A Weighted)	≤-120 dBu
Channel isolation	104dB @1k Hz
Common mode rejection	70dB @80 Hz
Maximum input level	18dBu
Maximum output level	18dBu
Floor Noise	-90dBu
Working Power	DC12V/2A
Size	48225845(mm)；
Net Weight	2.5kg

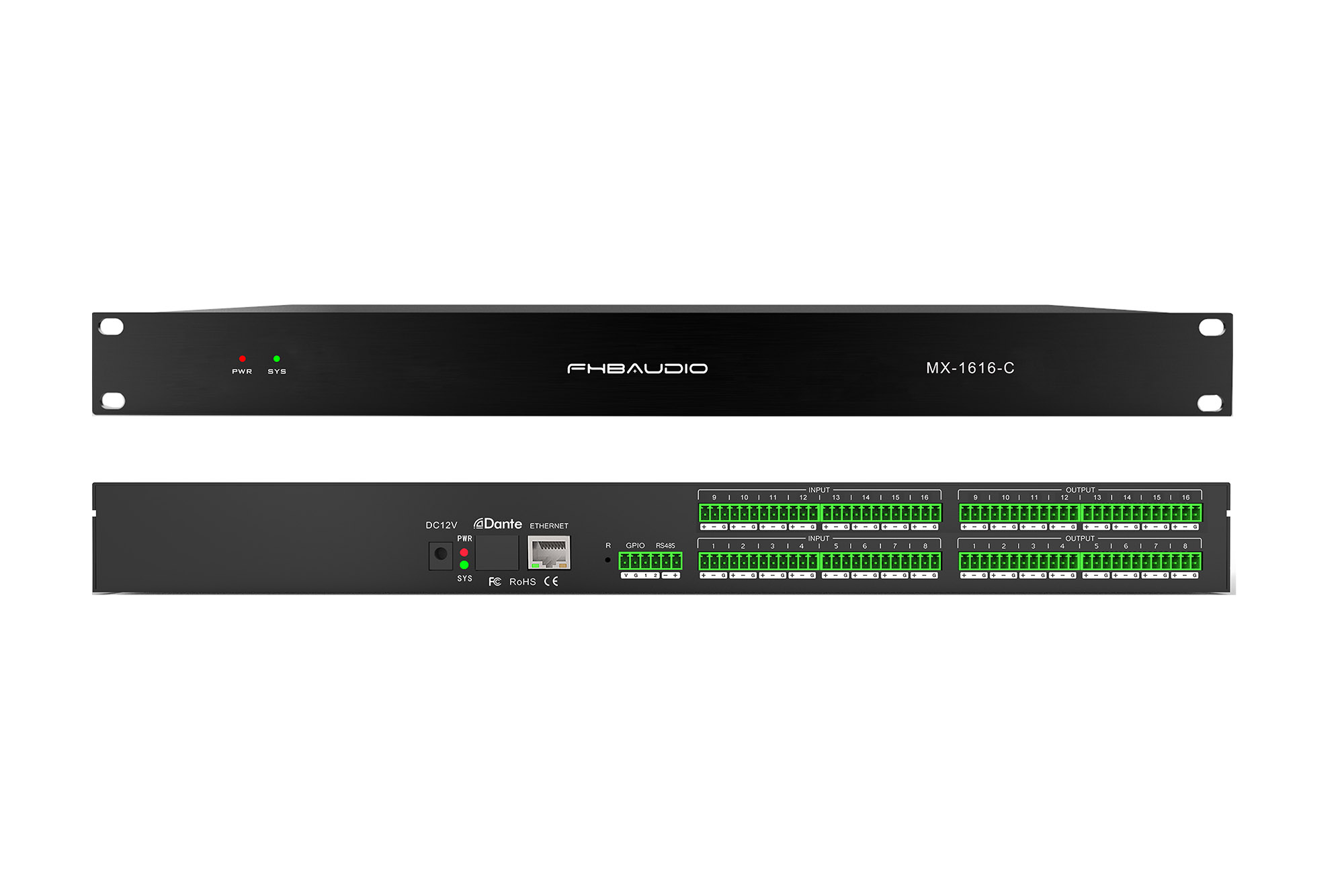

I/O
Model No.	MX-0808-C	MX-0808D-C	MX-1616-C
No. of analog input	8	8	16
No. of analog output	8	8	16
No. of Dante input	×	4	×
No. of Dante output	×	4	×
Ethernet	1	1	1
RS485	1	1	1
GPIO	2	2	2
Input gain amplification	-24～18dB,6dB,Total 7 level
Balanced/non-balanced,	Support
MICLINE	Support
Each independent 48V phantom power supply	Support
DSP Processing
AFC	√	√	√
AEC	×	×	×
ANC	×	×	×
AM	√	√	√
AGC	√	√	√

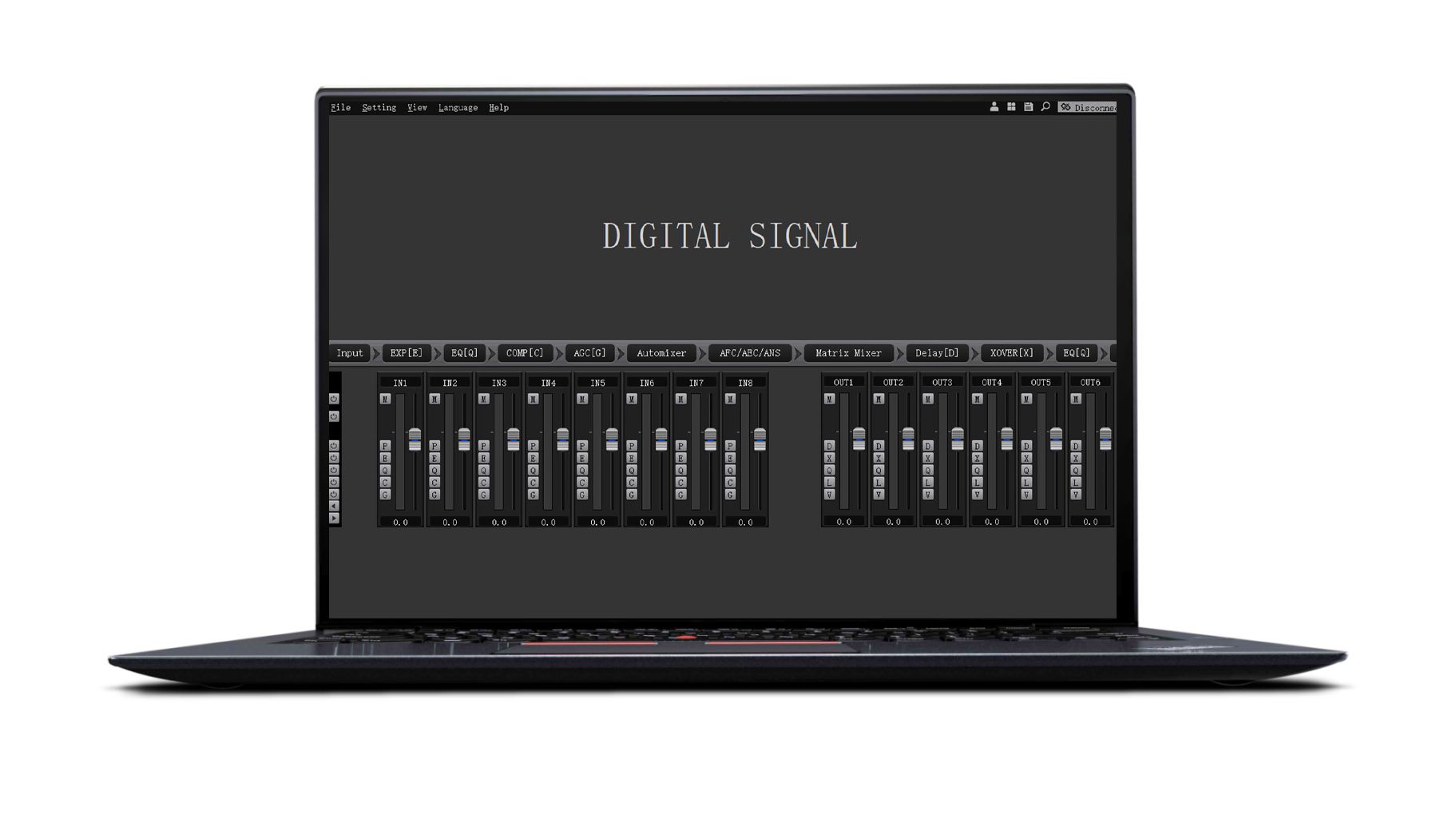

PC Software
PC Software	Support
Windows32位	Support
Windows64位	Support
client-side	Built-in client, support online download

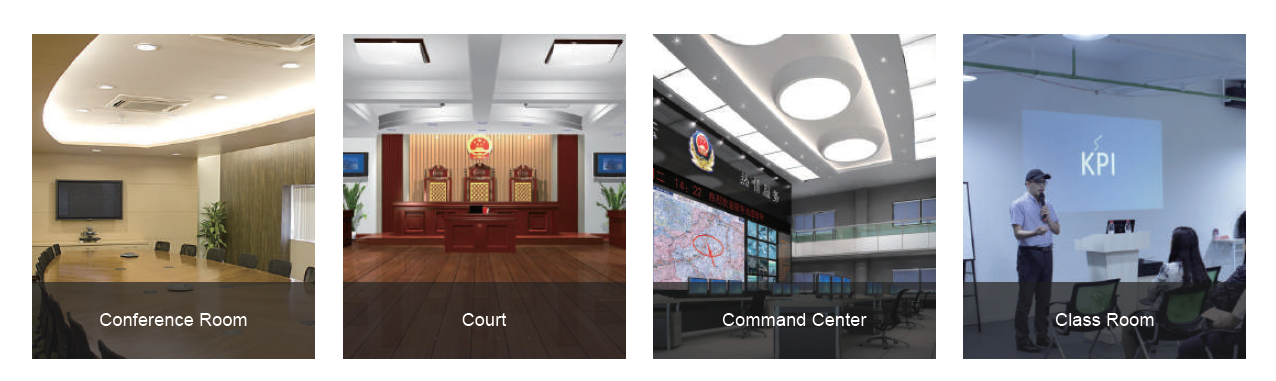

Applications:

16x16 Hotel Audio DSP Processor Professional Matrix Sound Management

Company Introduction:

FHB Audio was established in 2018,who is a technology-based enterprise integrating design, research and development, production, sales, and service, specializing in the production of digital signal processor, digital conference system, Dante products line, microphones, Digital Mixer, power amplifier etc., also can provide customers with a series of according to their requirements, mainly for conference, education, hotels and other application

The company has strong R&D technical strength and advanced production equipment, and has a complete product quality control system. From raw material input to cost delivery, all links are tested and quality tracked, so as to ensure reliable and stable quality.

16x16 Hotel Audio DSP Processor Professional Matrix Sound Management

A:Sample order: During 5days,Bulk order:10-15days
